CNC Engraving Machine from China manufacturer

Price:	3000.0~8000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 0609

Production Capacity: 25/Month

Delivery Date: 15 days

Raw Material: Steel Bar

Brand Name: Roctech

OEM: Yes

Size: Small

Means of Transport: Ocean

Packing: Wooden box

Power: Cnc

Certification: CE

Place of Origin: Shandong, China (Mainland )

Condition: New

Working Area: 600x900x120mm

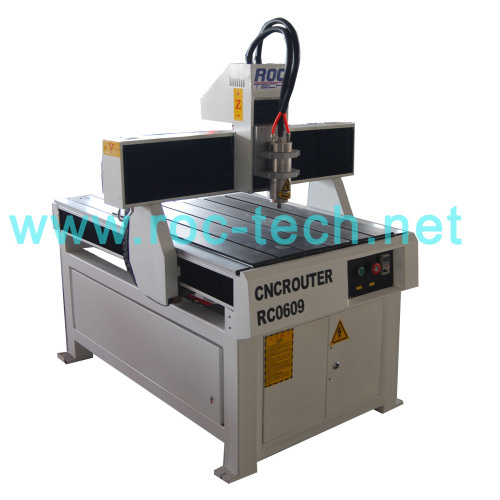

CNC Cutting MachineRC0609
1, TBI ballscrews
2, Desktop
3, Delta Inverter
4, For advertising

The machine is the best choice for small piece materials working, and it is suitable for advertising working. It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials. Working with dust hood on all three axis, it can stop dust away from the rails and ball screws, and to keep the machine working for longer time.

We use accurate LM linear (HIWIN) for Y axis, with options such as water cooling system or mist cooling system etc.

Performance parameter

Number	Description	Parameter
1	X,Y,Z Working Area	600mmx900mmx120mm
2	Table Size	720mmX1140mm
3	X,Y,Z Traveling Positioning Accuracy	±0.01mm/300mm
4	X,Y,Z Repositioning Accuracy	±0.01mm
5	Table Surface	T-slot Table
6	Frame	Welded Structure
7	X, Z Structure	Round Rails and TBI Ball Screw,
8	Y Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	0.8Kw
10	Max. Rapid Travel Rate	10000mm/min
11	Max. Working Speed	6000mm/min
12	Spindle Power	1.5Kw Water Cooling Spindle
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper System
15	Working Voltage	AC220V/50/60Hz, 1Phs
16	Command Language	G code
17	Operating System	DSP System (options: Ncstudio/Mach3 PC Software)
18	Computer Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER16
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3/UcancameV9 software (Option: Artcam software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	1710mmx1250mmx1585mm
26	N.W.	160KG

Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk
