CNC Routers from China manufacturer - Roctech Machinery Co.,Ltd

Price:	3000.0~8000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RC0404

Production Capacity: 25/Month

Delivery Date: 15 days

Raw Material: Steel Bar

Brand Name: Roctech

OEM: Yes

Size: Small

Means of Transport: Ocean

Packing: Wooden box

Power: Cnc

Certification: CE

Place of Origin: Shandong, China (Mainland )

Condition: New

Working Area: 400x400x90mm

CNC Cutting MachineRC0404
1, TBI ballscrews
2, Desktop
3, Delta Inverter
4, For advertising

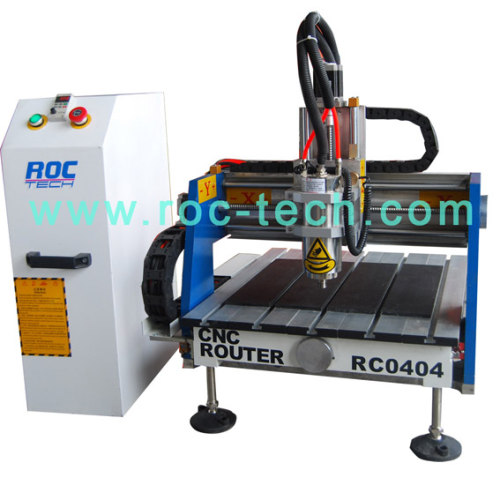

CNC Cutting Machine RC0404

This machine is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials. We use accurate LM linear (HIWIN) for Y axis, with options like water cooling system, mist spray cooling system etc. With T-slot table, holding the materials with clamps, you can design a variety of high-precision artwork.
With the table type CNC router, it is the best choice for small piece materials working, so you can use it in the office or at home.

Performance parameter

Number	Description	Parameter
1	X,Y,Z Working Area	400x400x90mm
2	Table Size	450x640 mm
3	Table Surface	T-slot Table
4	Frame	Cast Iron
5	X, Z Structure	Round Rails and TBI Ball Screw
6	Y Structure	Ball Screw, Hiwin Rail Linear Bearings
7	Max. Power Consumption (Without spindle)	0.8 KW
8	Max. Rapid Travel Rate	8000mm/min
9	Max. Working Speed	5000mm/min
10	Spindle Power	1.5kw Water Cooling Spindle
11	Spindle Speed	0-24000RPM
12	Drive Motors	Stepper System
13	Working Voltage	AC220V/50/60Hz,1 Phs
14	Command Language	G Code
15	Operating System	DSP System (options: Ncstudio/Mach3 PC Software)
16	Software Compatibility	Type3/UcancameV9 Software (Option: Artcam Software)
17	Running Environment Temperature	0 – 45 Centigrade
18	Relative Humidity	30% - 75%
19	Computer Interface	USB
20	Flash Memory	128M(U Disk)
21	X,Y,Z Traveling Positioning Accuracy	±0.01/300mm
22	X,Y,Z Repositioning Accuracy	±0.01mm
23	X,Y Resolution	<0.01mm
24	Collet	ER16
25	Packing Size	900X900X900mm
26	N.W.	100kg
27	G.W.	150KG

Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
